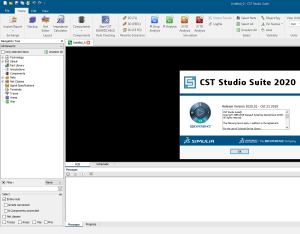

SIMULIA CST Studio Suite 2021 SP1 Win64
CST STUDIO SUITE is an electromagnetic simulator software that, according to CST, is the culmination of years of research and development with great precision and efficient solutions for electromagnetic design. CST Studio Suite includes CST tools for designing and optimizing operating devices in a wide frequency-static range in the visual field. With this software, you can design, model, and assemble devices circuits, and electromagnetic systems in a three-dimensional environment, as well as simulation. Pay numbers in electromagnetic fields.
CST STUDIO SUITE has an integrated design environment and the advantages of this software are ease of assembly and modeling of the system, multifunctionality, and the possibility of professional-level simulation in all systems and electromagnetic circuits. This software can offer significant benefits to the market, such as a shorter development cycle, virtual prototyping before practical testing, and product optimization without the need for multiple tests.
From the 2020 version, this collection, together with Antenna Magus software, is owned by Dassault Systems and is a subsidiary of SIMULIA. Fest3D and Spark3D software are also installed and usable with this package.
Features and specifications of CST STUDIO SUITE software:
– Local graphical user interface based on Windows
– Multiple interfaces between documents
– Variable tools, parameters, and message window
– (OLE) Automatic server linking and embedding (COM / DCOM)
– Transfer parameters
– Automatic optimization
– Animate the output design
– Automatic creation of PowerPoint slides
– Project management
– Ability to change the status between different components of the software, including:
CST DESIGN STUDIO (CST DS), CST MICROWAVE STUDIO (CST MWS), CST EM STUDIO (CST EMS),
CST PARTICLE STUDIO (CST PS), CST MPHYSICS STUDIO (CST MPS), CST PCB STUDIO (CST PCBS), CST CABLE STUDIO (CST CS)
Components of the CST STUDIO SUITE:
CST MICROWAVE STUDIO – CST MWS: Outstanding tool edge for speeding up and accurately simulating 3D high-frequency devices.
CST EM STUDIO – CST EMS: A simple tool for designing and analyzing static and low-frequency devices such as motors, sensors, transformers, and ST
CST PARTICLE STUDIO – CST PS: Used for fully stable simulation or motion of charged particles. This includes an electron gun, a cathode ray tube, and the like.
CST CSBLE STUDIO – CST CS: For flawless signal simulation and detection of electromagnetic compatibility or incompatibility and cable shield analysis.
CST PCB STUDIO – CST PCBS: For flawless signal simulation and detection of electromagnetic compatibility or incompatibility on the printed circuit board.
CST MPHYSCIS STUDIO – CST MPS: For thermal and mechanical pressure analysis.
CST DESIGN STUDIO – CST DS: A versatile tool that helps simulate and synthesize electromagnetic circuits.
